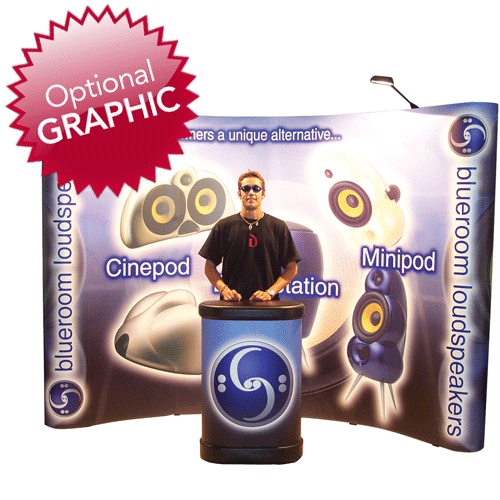

10' MagnaLock Pop Up

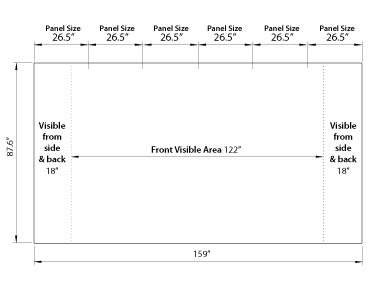

Overall Height: is 87.6" (2225mm) with 6 equal width panels measuring 26.5" (673mm). You should create your mural as a single file with a total width of 159" (4038mm) by 87.6" (2225mm) in height. Remember to reserve the outside 18" (left and right sides) for endcaps that wrap around to the back. We recommend that you continue your background treatment but not any text or logos in this outside area.

Shipping Weight: 65 pounds. Note that some products ship on "dimensional weight" which is based on size not actual weight.

Latex Vinyl Panel: The base system is printed on a Latex printer on adhesive Vinyl then mounted to a 20 mil rigid Styrene backer. Consider upgrading to a OpalJet Panels for the highest quality graphics available!

OpalJet: is a Photo Mylar with light-block backing and textured satin over laminate. This material is unequaled for vivid and accurate color. This is a premium panel intended for high-end long life applications.

Sending your Artwork

You can send us final files using the following specifications or for a $199.00 fee, let us create production artwork from your design concept, logos and photos.

Preparing your Files: Files must be supplied at 100% of the size shown in the technical specifications. Images should be set at 100 DPI. Files should be supplied in EPS or TIFF format with images converted to CMYK. Files sent in any other format will incurr additional charges for conversion.

Proofing: These files are sent directly to production and are NOT proofed by Alta Graphics. The purchaser of the graphics is responsible for proofing all design files with their respective graphic designer prior to submitting them.

Using our File Creation Service: Let us turn your design concept into a professional design! You need to supply us with all logos, images and text together with a rough layout. If you do not know what you want or require several design proposals, your needs are beyond the scope of this service. Contact customer service with any questions.

Booth Assembly:Unpack Frame and open ensuring top and front are correctly orriented. Connect 21 magnetic channel bars to hubs on front and rear outer edge. unroll panels on floor and hang in respective positions allowing magnets to seat panel. Minor alignment adjustments can be made by separating panel and channel bar and shifting panl up or down. This allows perfect alignment

Booth Dis-assembly: Remove graphic panels by separating panel from channel bar starting at bottom. Lay panel on floor and roll to insert in case. Remove Channel bars and close frame. NOTE: if frame is difficult to close it still has a bar that needs to be removed. and repack in case.

Storage: While Booths are very durable and will provide a long service live it is best to avoid temperature extremes and moisture.

Shipping: Booths are very easy to transport by any carrier or airline in the supplied shipping case.
